Monitors

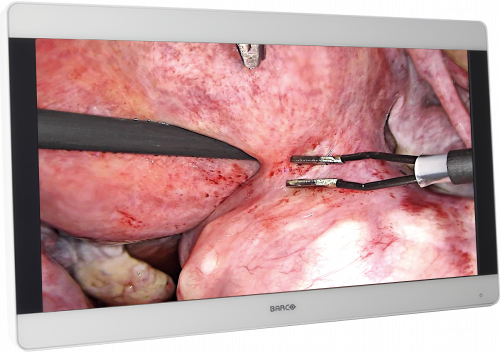

• Panel: 31“ - TFT AM LCD / IPS-PRO technology / LED backlight
• Resolution: 4K-2K (4096 x 2160 pixels)
• Luminance: Max 550 cd/m²
• Contrast ratio: 1400:1
• Viewing Angle (H/V): 178° / 178°
• Aspect ratio: 17:9
• Colors: 1073 million (10-bit)
• Video inputs: 4K-UHD input selectable, FHD inputs (upscaled to UHD): 1x DVI, 1x 3G-SDI
• Video outputs: 1x 3G-SDI, 1x DVI
• Mounting: 100x100 & 200x100 mm VESA
• Dimensions (W x H x D): 777 x 472 x 93 mm
• Weight: 12100 g
• Power supply: 100 - 250 VAC / 47 - 63 Hz
• Protection type: IP20 (IP45 front side only)

• Panel: 27“ - TFT AM LCD / IPS-PRO technology / LED backlight
• Resolution: Full HD 1920 x 1080 pixels
• Luminance: 1000cd/m2
• Contrast ratio: 1000:1
• Viewing Angle (H/V): 178° / 178°
• Aspect ratio: 16:9
• Colors: 1073 million (10-bit) / SRGB 115% (Deep Red)
• Video inputs: 1 x HDMI (1.4), 1 x S-Video, 1 x Composite, 1 x 3G-SDI, 1 x DVI-I (Compatible with D-sub & Component by adapter)
• Video outputs: 1 x 3G-SDI, 1 x DVI-D
• Mounting: 100x100 mm VESA
• Dimensions (W x H x D): 656,4 x 412,9 x 62,2 mm
• Weight: 7 700 g
• Power supply: 100 - 240 VAC / 50 - 60 Hz

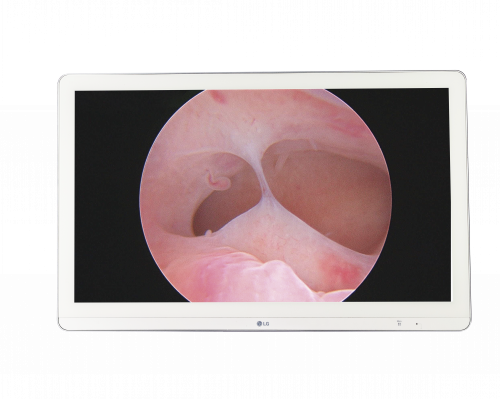

• Panel: 21,5“ - LED-backlit TFT LCD
• Resolution: Full HD 1920 x 1080 pixels
• Luminance: 250 cd/m2
• Contrast Ratio: 1,000 : 1
• Viewing Angle (H/V): 170°/160°
• Colors: approx. 16,7 millions
• Response speed: 3 ms
• Video inputs: 1x HDMI, 1x VGA, 1x DVI, 2x CVBS, 1x S-Video
• Video outputs: 2x CVBS, 1x DC Output
• OSD languages: EN / ES / IT / PY / DE / FR / RO / PL / CS / NL / JA / CH
• Mounting: VESA 75/100mm
• Dimensions (W x H x D): 513 x 369 x 155 mm
• Weight: 6900 g
• Power supply: 100 - 240 VAC / 50 - 75Hz
• Power consumption: < 34,5 VA
• Delivered with CD ROM (user manual), power cord,
