S198 - Symbioz Cam+

S198 - Symbioz Cam+

CONNECT YOUR CMOS CAMERA TO HIGHLIGHT YOUR SURGERY

SYMBIOZ Cam+ highlights your surgery thanks to the latest sensor technology on the market.



01 PRODUCT BENEFITS

HIGH QUALITY IMAGES

Having control of your surgery, identify the details, brings more quality to your work. With a Full HD camera, and adjustable image settings, perfectly visualize your operating area.

PERSONALISED PROFILES FOR EACH SURGEON

Customized settings can be programmed, stored and retrieved with contactless SCard using NFC technology. The tower is programmed facing the personalized settings for particular surgery for each surgeon.

FULLY CONTROLLABLE FROM THE CAMERA HEAD

Thanks to the ISYME technology, all parameters can be controlled from the camera head: video parameters but also the light and the insufflator.

02 MAIN CHARACTERISTICS

CAMERA HEAD

- 1 CMOS sensor with Full HD resolution
- Integrated 15-35mm HD zoom
- 1920 x 1080 pixel resolution
- 3 Independently programmable control buttons
- Ergonomically designed by physicians and clinicians

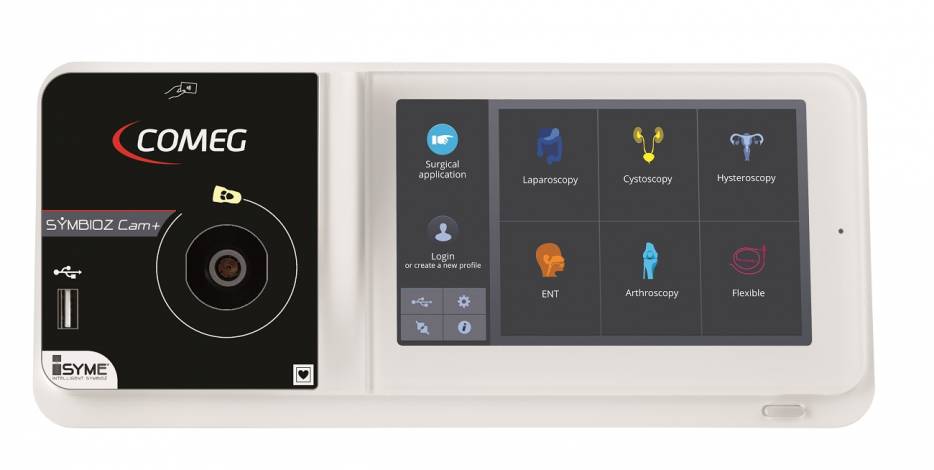

CCU

- Preset programming for LAP, ENT, GYN, URO, ARTHRO and Flexible Endoscopy
- NFC technology allows individual physician SCard programming
- Unlimited physician profile settings
- Integrated communication with Symbioz LED and Symbioz Flow
- Integrated Full HD image and Full HD video recording capability thanks to the USB connection on the front panel
- All functions are programmable for camera head use
- Touch screen with 16:9 resolution
- Easy to plug monofilament connector
- Great contrast precision for a better perception of the environment

04 LEGAL NOTICE

SOPRO is the manufacturer of the medical device of Class I carrying the CE mark.  These medical devices commercialized by SOPRO are not reimbursed by health insurance bodies and are exclusively intended for healthcare professionals. Read carefully the instructions for use appearing in devices notes before any use.
