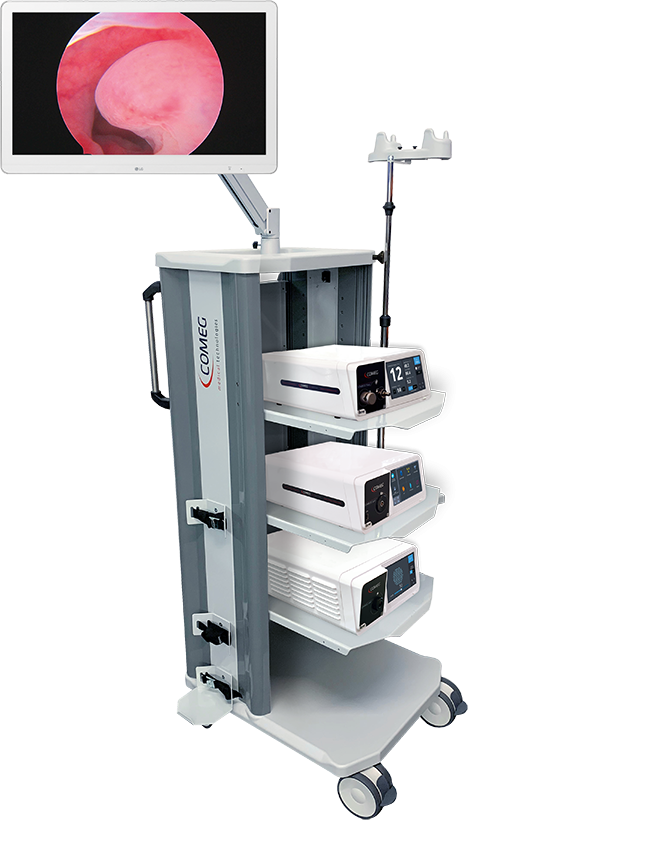

Create your own surgery with a smart connected solution
SYMBIOZ Full HD is your solution for the operating room. Multi-disciplinary, with a high-quality image thanks to the specific FULL HD sensor, SYMBIOZ Full HD expends the boundaries of the vision while treating your patient safely.
A unique image for each user, this is now possible with personalized user profiles. More brightness, less red colors, etc… every surgeon has his own perception of his work environment and is used to a certain type of image. Then, physicians can program their parameters, save them into their own user profile, and retrieve them each time they use the tower. One tower, multiple users and as many settings as desired.
Personalized profiles can be stored on a Scard. Simply approach your card to the camera control unit and… this is it! You’re connected and all your preferred parameters are displayed. Now, get ready for your surgery!
ISYME is an exclusive technology connecting all the towers elements together and taking the best of each to provide the best user experience, no matter what happens. Above all, everything is connected to the camera and can be controlled directly from the camera head to increase the ease of use for surgeons. ISYME provides then an optimal surgical environment.
- 1 CMOS sensor with Full HD resolution
- Integrated 15-35mm HD zoom
- 1920 x 1080 pixel resolution
- 3 Independently programmable control buttons
- Ergonomically designed by physicians and clinicians
- Preset programming for LAP, ENT, GYN, URO, ARTHRO and Flexible Endoscopy
- NFC technology allows individual physician SCard programming
- Unlimited physician profile settings
- Integrated communication with Symbioz LED and Symbioz Flow
- Integrated Full HD image and Full HD video recording capability thanks to the USB connection on the front panel
- All functions are programmable for camera head use
- Touch screen with 16:9 resolution
- Easy to plug monofilament connector
- Great contrast precision for better perception of the environment
- LED technology
- LED lifetime up to 50 000 hours
- Light intensity equivalent to 300W Xenon light source
- Remotely controlled from SYMBIOZ Camera head thanks to ISYME concept
- Automatic or manual adjustment of the light intensity
- Color temperature: 6500°K
- Automatic thermal protection system
- Anti-blinding feature with light cable detection
- Standby mode
- Electronic iris
- Power level memory
- Maximum flow: 45L/min in high flow mode - 2L/min in low flow mode
- Automatic flow rate management according to leakages
- Manual or automatic low flow/high flow switching
- Set cavity pressure: From 0 to 25mmHg (accuracy of 1mmHg)
- 7’’ 16/9 touchscreen with intuitive interface displaying: immediate flow, intra-cavity pressure, low cylinder levels, total volume of CO2 used, chronometer
- Clear messages displayed both on touchscreen and main monitor with sound alarms
- External control from SYMBIOZ camera head thanks to ISYME concept
- External exsufflation valve for over pressure to avoid cross contamination
- Specific setting for Bariatric surgery
- Real time display of CO2 cylinder pressure or central CO2 supply pressure
- Patented autonomy feature: Displays in minutes the remaining time of insufflation
- Internal pre-heating system
- Disposable or reusable tubings

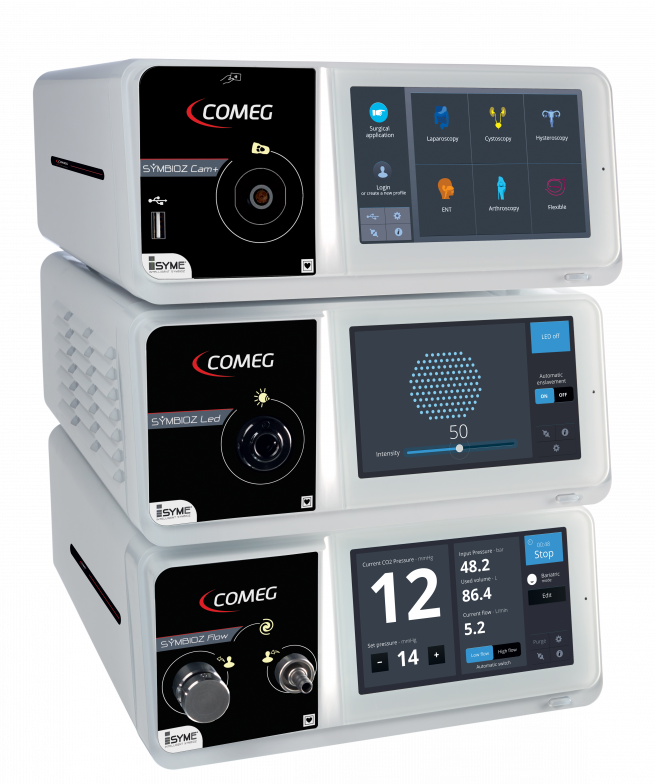

- Full connection between all the Symbioz elements
- Remote control of all elements from the Symbioz Camera Head
- Storing of all devices parameters
- Remote control of all Symbioz elements
- FULL HD pictures and videos archiving system
- Data patient base
- Chromatic image enhancement
- Improve imaging of anatomical vascularization
- Assistance with diagnosis and treatment
"This endoscopy system is a model of simplicity and is stuffed with technology. This is how my operating room staff feel the equipment and this is how I use it. The same logic is found in the touch screen for example. And the same is true for the camera head where numerous adjustments can be made, almost intuitively without disturbing the work of my team and its coordination. For a surgeon, this is essential!"
Dr Nicolas Castaing, 4 Villes Hospital, Saint Cloud, France.
SOPRO is the manufacturer of these medical devices of Class I and IIa carrying the CE mark. LNE-GMED 0459 notified body. These medical devices commercialized by SOPRO are not reimbursed by health insurance bodies and are exclusively intended for healthcare professionals. Read carefully the instructions for use appearing in devices notes before any use.
